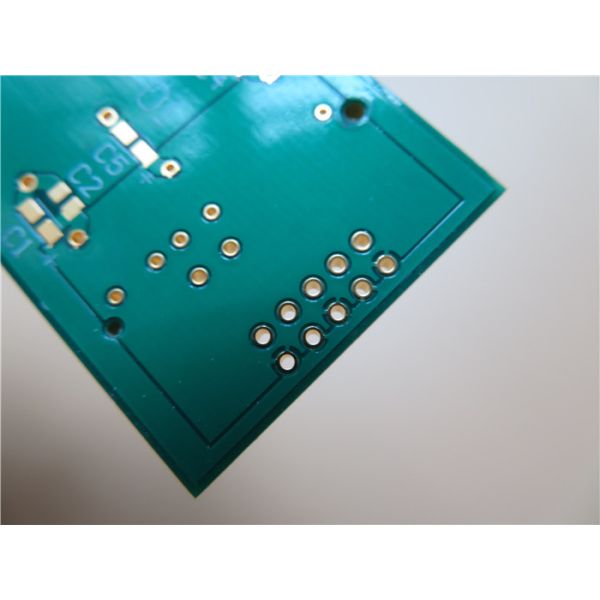

Thick PCB 2.4mm Circuit Board Dual Layer PCB Board Built on FR-4 With 2oz Copper for SATA Carrier
Product profile
1.1 General description
This is a type of 2 oz double sided PCB built on FR-4 substrate with Tg 150°C for the application of micro SATA carrier board. It's 2.4 mm thick with white silkscreen(Taiyo) on green solder mask (Taiyo) and immersion gold(4 microinch gold) on pads. The base material is from ITEQ supplying single PCB. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panels are packed for shipment.
1.2 Features and benifits
Mid Tg substrate with Very Low Moisure Absorption and better CAF resistance
High solderability, no stressing of circuit boards and less contamination of PCB surface.
ISO9001, ISO14001, UL certified manufacturing factory.
30000 square meter month capability
Professional and experienced engineers
12 hours quotation
Volume Production capability
1.3 Applications
Alarm System
Long Range WiFi Antenna
PLC Programming Tutorial
Modular Oscilloscope
Fiber optic receptors
1.4 Parameter and data sheet
| PCB SIZE | 65.5 x 33.75mm=1PCS |
| BOARD TYPE | Double Sided PCB |
| Number of Layers | 2 Layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 52.5um(1.5oz)+plate TOP layer |
| FR-4 2.3mm |
| copper ------- 52.5um(1.5oz)+plate BOT layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 23 mil / 7.7 mil |
| Minimum / Maximum Holes: | 0.7 mm / 3.2 mm |
| Number of Different Holes: | 6 |
| Number of Drill Holes: | 23 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 Tg150℃, er<5.4.IT-158, ITEQ Supplied |
| Final foil external: | 2 oz |
| Final foil internal: | 2 oz |
| Final height of PCB: | 2.4 mm ±0.2 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (12.1% ) 0.1µm over 3µm nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo brand |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), minimum size 0.7mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
